Product Details
Product Overview
Overview

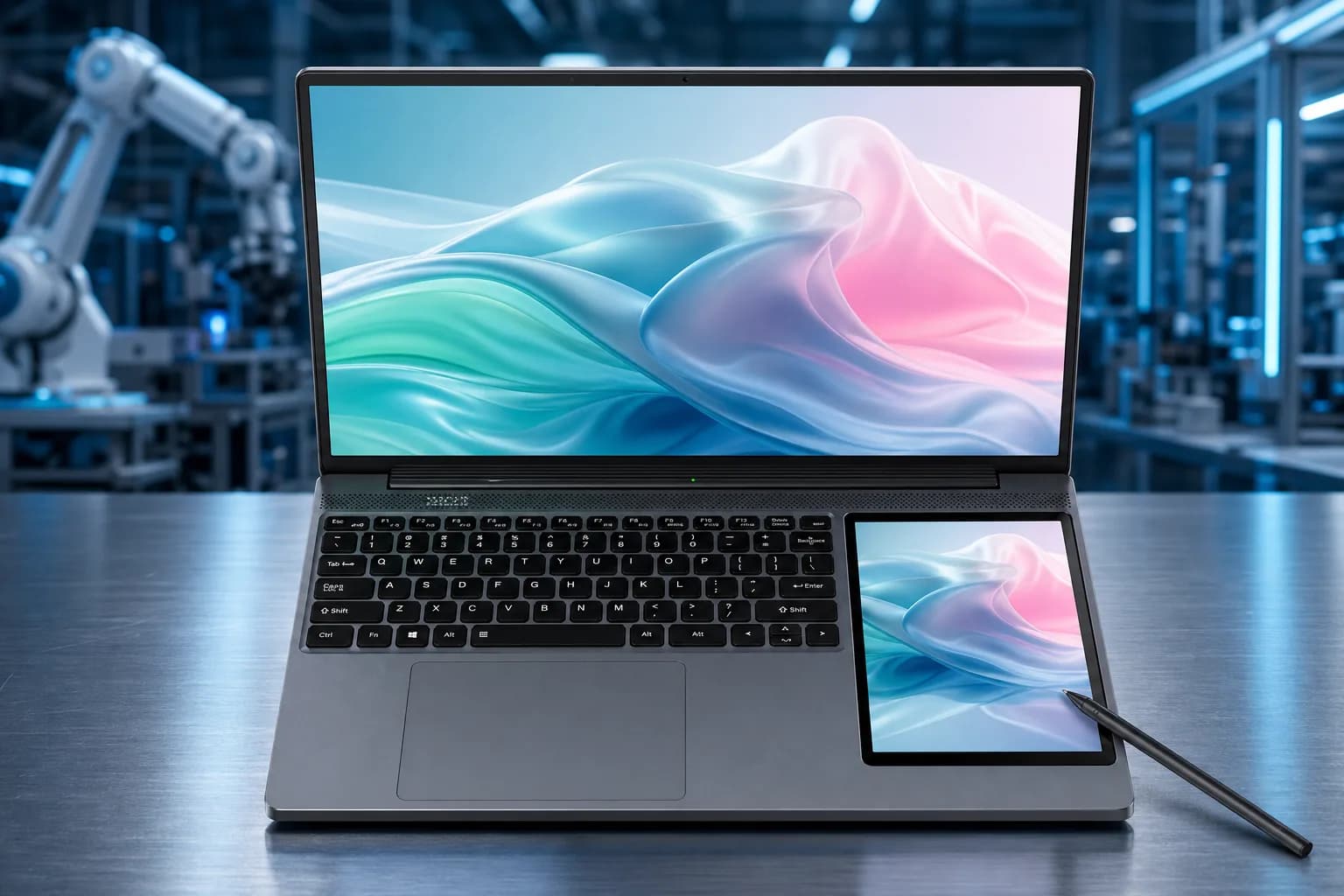

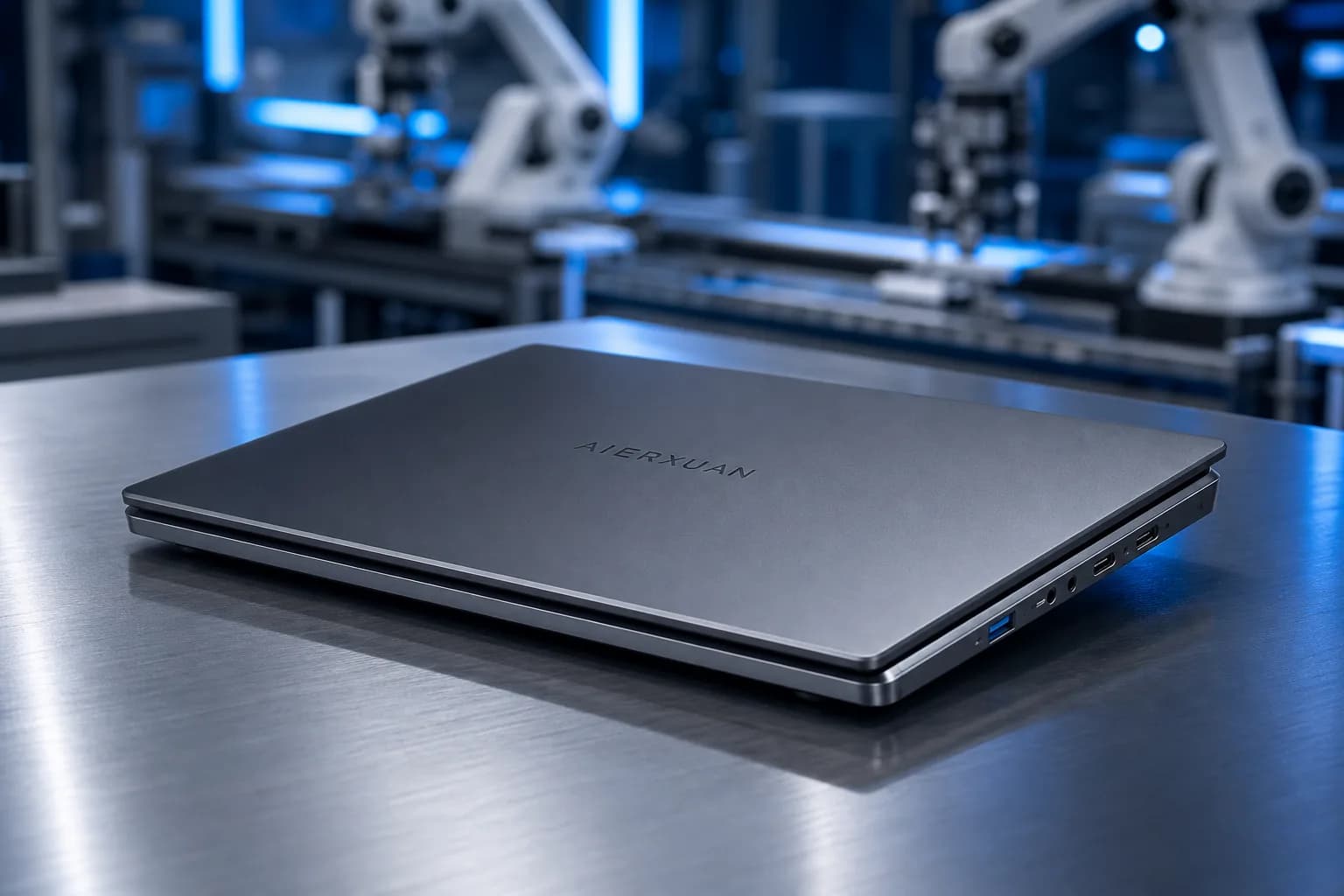

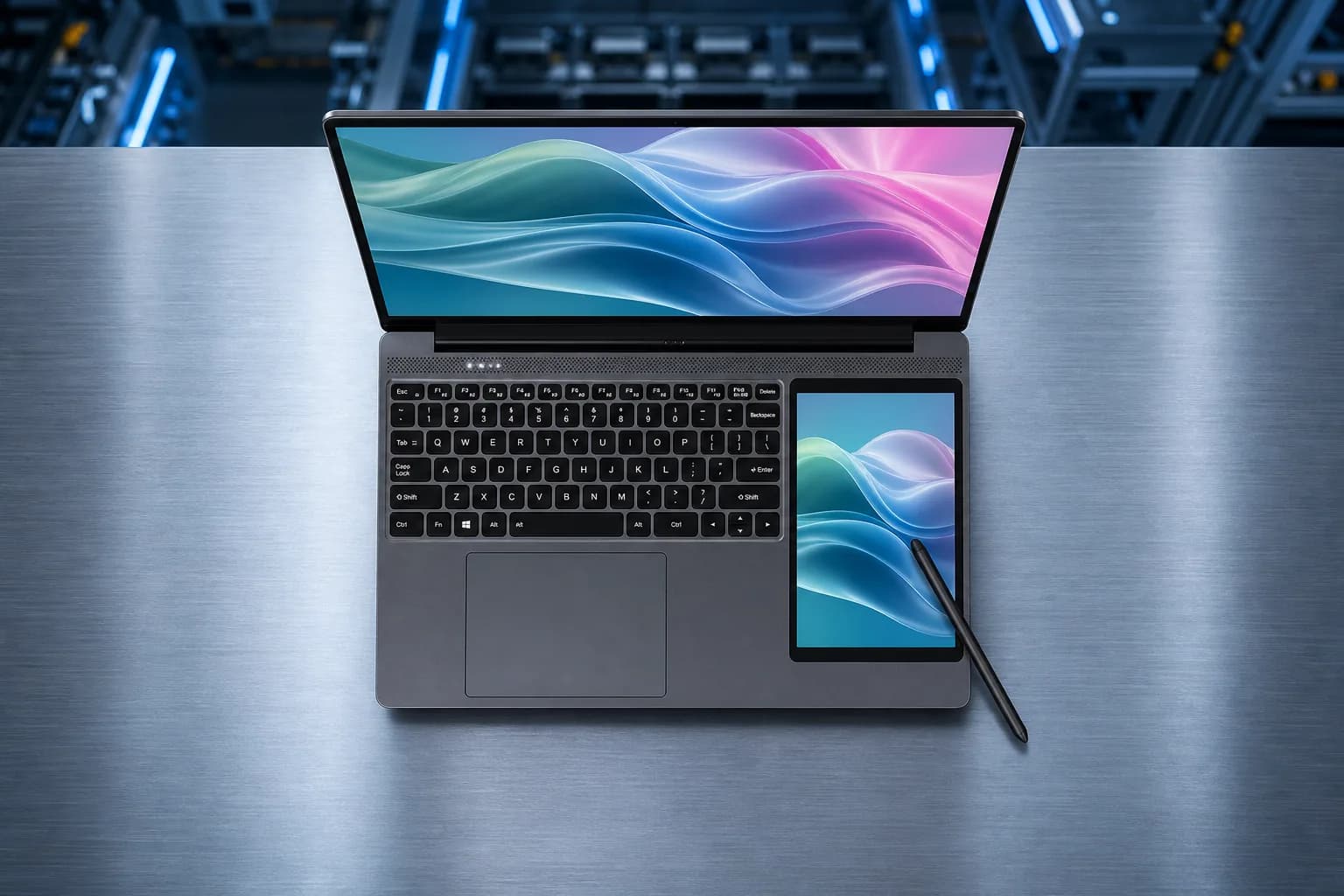

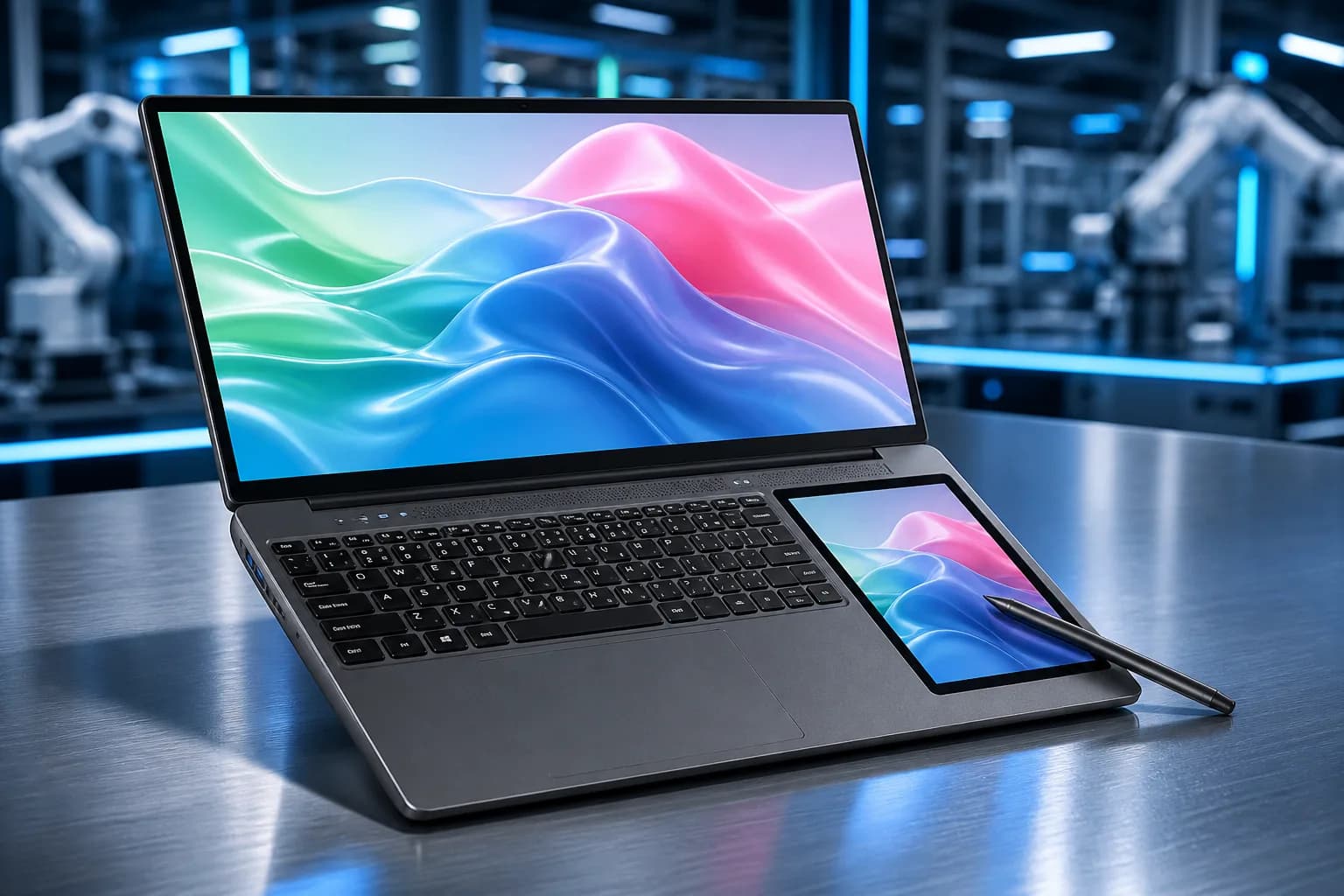

The Yaoxing 15S represents the future of mobile productivity with its innovative dual-screen design. Featuring a stunning 15.6-inch 2K main display paired with a 7-inch touch-enabled secondary screen, this laptop transforms how you work by providing unprecedented multitasking capabilities in a portable form factor.
Key Features
- Dual Display Innovation: 15.6" main screen (1920×1080) + 7" secondary touchscreen (1280×800)
- Touch & Pen Support: 10-point touch with 1024-level pressure sensitivity pen support on secondary screen
- Efficient Performance: Intel N100 processor (4 cores, up to 3.4GHz) with Master Lu score of 360,562
- Generous Memory: Up to 32GB DDR4 RAM for seamless multitasking
- Ultra-Fast Storage: Up to 2TB SSD with speeds 6x faster than standard SSDs
- Fingerprint Security: Integrated fingerprint reader in touchpad
- Enhanced Audio: Dual-channel cavity speakers for immersive sound
- Backlit Keyboard: Work comfortably in any lighting condition
Technical Specifications
Processor & Graphics
- CPU: Intel Processor N100 (4 cores, 4 threads)
- Base Frequency: 0.8GHz
- Max Turbo: 3.4GHz
- Cache: 6M
- Graphics: Intel UHD Graphics
- TDP: 6W (Ultra-low power consumption)
- Performance: Master Lu score 360,562
Display System
Main Display:
- Size: 15.6 inches
- Resolution: 1920×1080 (2K Full HD)
- Refresh Rate: 60Hz
- Type: Full screen design
Secondary Display:
- Size: 7 inches
- Resolution: 1280×800
- Touch: 10-point multi-touch support
- Pen Support: 1024 pressure sensitivity levels
- Use Cases: Drawing, note-taking, tool palette, quick access controls
Memory & Storage
- RAM: DDR4 16GB/32GB (Single slot, expandable)
- Storage: M.2 2280 interface
- 512GB / 1TB / 2TB options
- Ultra-fast SSD (6x faster than standard)
- SATA protocol support
Design & Build
- Dimensions: 357 × 225 × 21.3mm
- Weight: Approximately 1.6kg
- Material: Composite plastic
- Color: Space Gray
- Portability: Slim profile despite dual-screen design

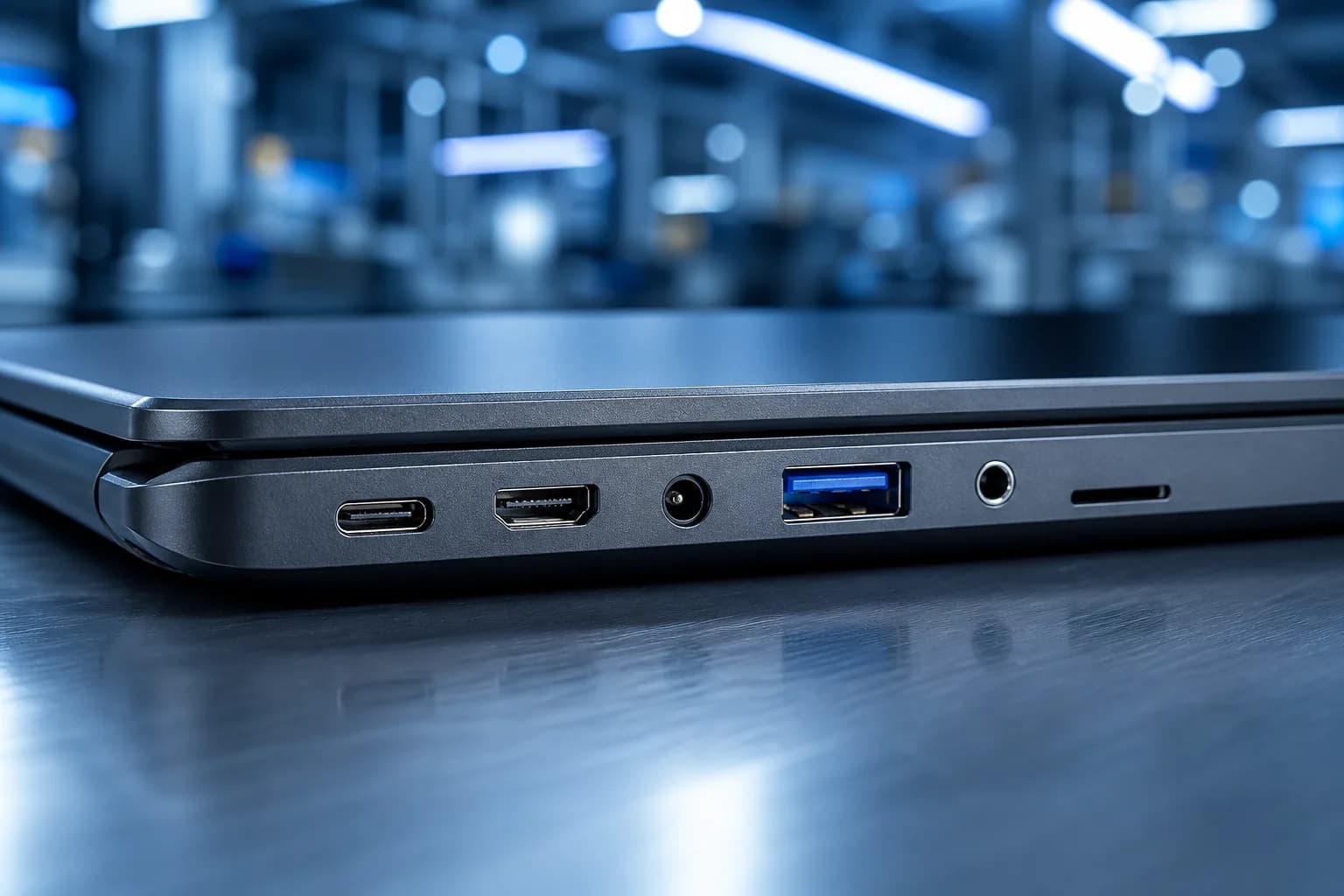

Connectivity
Left Side:
- USB Type-C (USB 3.0)
- Mini HDMI interface
- DC charging port (12V/3A)
- USB 3.0 port
Right Side:
- USB 3.0 port
- 3.5mm headphone jack
- TF card slot (supports up to 128GB)
Wireless & Security
- WiFi: WiFi 5 (802.11ac/b/g/n) dual-band
- Bluetooth: 4.2
- Security: fTPM 2.0, fingerprint reader
- Module: M.2 2230 form factor
Input Devices
- Keyboard: US English layout with backlight
- Touchpad: 119×85mm with integrated fingerprint sensor
- Secondary Display: Touch-enabled with pen input
- Camera: 0.3MP HD webcam
Audio & Multimedia
- Speakers: Dual-channel cavity speakers (8R/1.0W×2)
- Microphone: Built-in digital microphone
- Enhanced Audio: Optimized speaker chamber for better sound quality
Battery & Power
- Battery: 7.7V polymer lithium battery, 5400mAh
- Adapter: 12V×3A, 100-240V AC input (universal)
- Charging Indicator: Multi-state LED (charging, standby, on/off)
Operating System
- Windows 10 / Windows 11
Revolutionary Dual-Screen Experience
The secondary 7-inch touchscreen opens up new possibilities:
- Creative Work: Use as a drawing pad with pressure-sensitive pen
- Productivity: Display tool palettes, timelines, or quick-access buttons
- Communication: Keep chat windows or video calls on the second screen
- Media Control: Dedicated media player controls while working
- Note-Taking: Handwrite notes during meetings or lectures
- Extended Desktop: True dual-monitor experience in laptop form
Ideal For
- Content Creators: Artists, designers, video editors
- Business Professionals: Multitasking executives and managers
- Students: Note-taking and research
- Developers: Code on main screen, docs/terminal on secondary
- Presenters: Present on main screen, control on secondary
- Anyone: Seeking enhanced productivity through dual displays
Performance Highlights
With a Master Lu benchmark score of 360,562, the Intel N100 processor delivers:
- Smooth multitasking across both displays
- Efficient power consumption for longer battery life
- Capable performance for office applications
- Media playback and light content creation
- Web browsing and productivity software
Package Contents
- Yaoxing 15S Dual Screen Laptop
- Pressure-sensitive stylus pen
- 12V/3A power adapter
- User manual
- Warranty card
Experience the future of mobile productivity with dual-screen innovation. Contact us for bulk orders and custom configurations.
Technical Specifications
| MOQ | 100+ units |
| Brand | AIERXUAN |
| Series | Xiaoxuan Series |
| Display | 15.6-inch dual-screen laptop |
| Category | Business Laptop |
| Graphics | Integrated graphics |
| Warranty | 12 months standard hardware warranty |
| Processor | Intel N100 |
| Shop Model | Yaoxing 15S/N100 |
| Product Model | 15.6-inch |
